LEDT8/LC/G/4/850XL

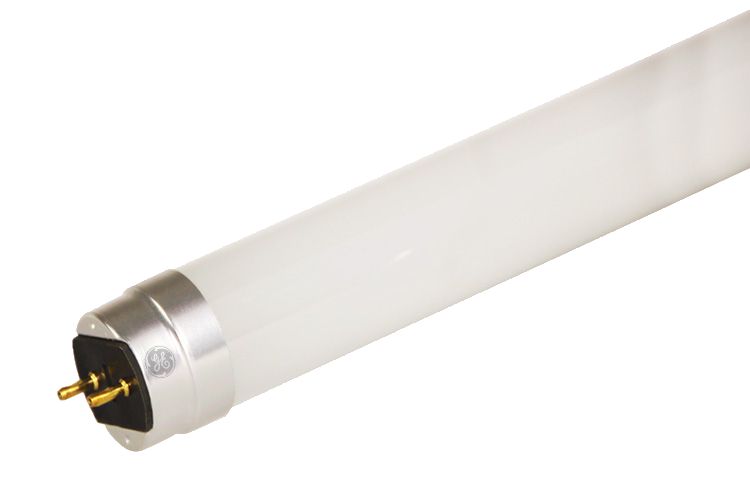

LED Type C T8 Glass Tube
SKU #
93314802
Features & Benefits
- ONE LED tube provides MULTIPLE lumen outputs through adjustable wattage external LED Driver
- Best performance, reliability and controls integration
- Streamline bill of materials, reduces and simplifies inventory, and allows easy adjustment to lumens/watts in the field
- 0-10V Dimmable
- 70,000 hour life with 7 year warranty
Specifications
GENERAL
UL Type
Type C
Bulb Shape
T8
Bulb Base Type
G13
Voltage
Requires LED Driver, Driver Input 120-277
Wattage
Selectable LW Driver 8/9/12/15/16.5 W
Wattage Replacement
N/A
Operating Life
70,000 hr
Dimmable
Yes
Operating Temp
-20 to 45 °C
Warranty
7 year limited warranty
PHOTOMETRIC
Efficacy
Adjustable
Lumens
Selectable LW Driver 1200/1500/1900/2300/2400 lm
CCT
5000 K
CRI
80 CRI
Beam Angle
270°
DIMENSIONS
MOL
48 in
Diameter
1 in
PACKAGING INFO
Standard Pack Quantity
20
UPC
662049525694
