Enhanced

Lumination® Decaux Max

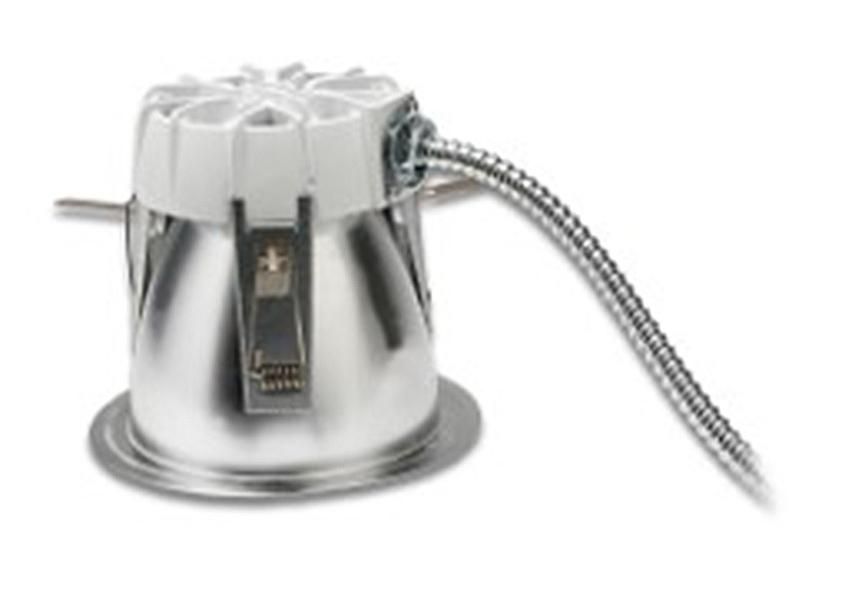

Architectural retrofit & new construction round commercial downlights with high performance from TriGain® technology. Reflectors for quiet ceiling look.
5_Yr_Warranty_Icon Wet_Rated_Icon TriGain_Icon TAA_Compliant_Icon RoHS_Icon EnergyStar_Icon Dimmable_Icon Damp_Rated_Icon Daintree_Icon cULus_Icon

Features & Benefits

  • TriGain® Technology provides superior color quality without compromising efficacy
  • Daintree® Wireless Controls options for code compliance and provide additional energy savings
  • Ease of installation with one-piece tool-less fixture
  • Below-ceiling access for convenient maintenance
  • Emergency egress lighting with battery back-up option
  • Patented reflectors provide "quiet ceiling" aesthetic while delivering light
Where To Buy
SPEC SHEET

Specifications

Product Technology
Daintree®, TriGain®
Family Modules/Configurations
6in, 8in, 10in, 12in, Round
Voltage Offering
120-277 V, 120 V, 347 V
Lumen Range
1,000 - 6,000lm
CCT Offering
2700 K, 3000 K, 3500 K, 4000 K, 5000 K
CRI Offering
83, 90 TriGain®
Mounting Options
Recessed
Wattage Range
10 - 58 W
Efficacy Range
63 - 116 LPW
Color Offering
Semi-diffuse Reflectors/Trim, White
Optics & Distributions
Narrow (36°), Wide (56°), Wall Wash
Controls & Sensors
0-10V Dimming, Daintree Wireless Enabled, Lutron Enabled
Certifications
UL, cUL, NOM, ENERGY STAR, FCC
Ratings
Wet, TAA, USMCA, RoHS
Operating Temp
-20 a 30 °C
Lumen Maintenance Rating
L85 @ 50,000 hours
Warranty
5 year limited warranty

Product Documents

Brochures / Catalogs

IES

Technical Documents

Warranties

Superior Color Quality with No Efficacy Loss

Current’s TriGain® technology, with its patented narrow-band red emission, provides best-in-class color & efficiency. With trends in color quality towards preference in fidelity & saturation, ANSI/IES TM-30 provides an alternative to CRI. Few light sources can meet the criteria in TM-30 Annex E, and TriGain® technology stands alone as the only to do so with high efficacy.

Intelligent Controls

Daintree® Wireless Controls provide out-of-the-box integration for enhanced functionality and energy savings. Daintree Wireless Controls provides additional energy savings and the infrastructure to grow into the world of IoT today, or in the future.

Designed with Installers in Mind

This ideal one-piece, tool-less retrofit downlight converts most existing traditional downlights with an easy installation of clamping onto existing rough-in frames. New construction applications utilize a new matching frame-in kit, containing a PSU box and adjustable butterfly brackets that work with your existing materials or the accessory hanger bars option.
