New

Lumination® PSF

PSF is a strip fixture with selectable lumens and CCT settings. Fast and easy mounting makes it suitable for a variety of commercial and industrial installations.
5_Yr_Warranty_Icon Wet_Rated_Icon Title_24_Compliant_Icon Title_20_Compliant_Icon Selectable_Lumens_Icon Selectable_CCT_Warm_Icon RoHS_Icon QuickShip_Icon DLC_Standard_Icon Dimmable_Icon cULus_Icon Controls_Enabled_Icon

Features & Benefits

  • Field Selectable: 3 lumen levels and 3 color temperatures (CCT)

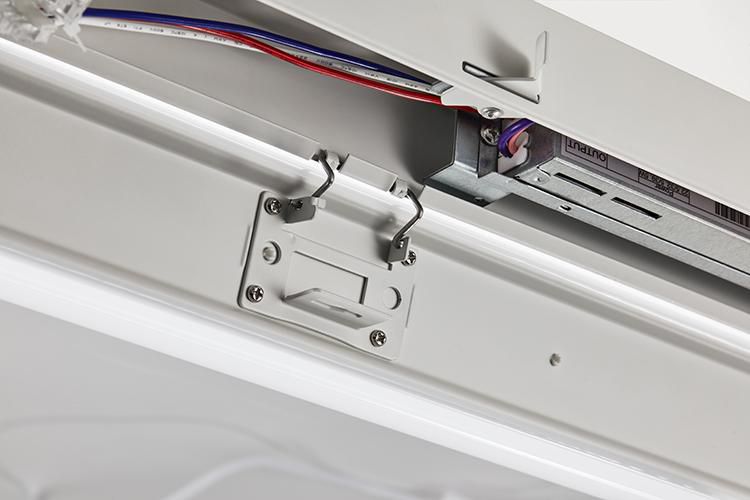

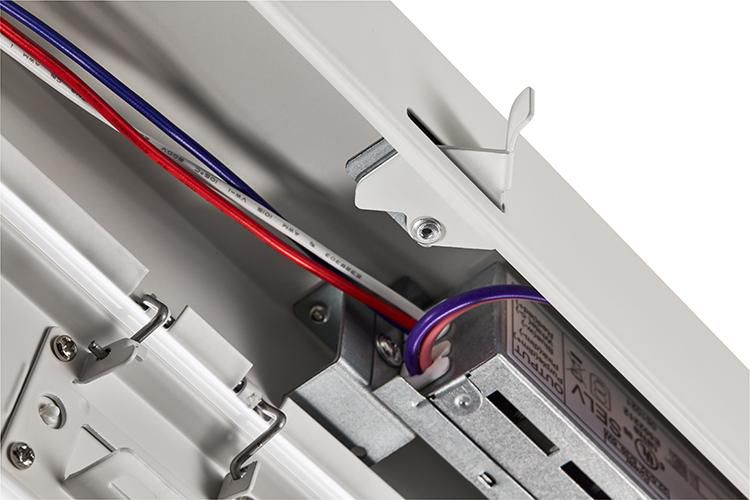

  • No hassle installation, featuring our "no screw" hinge and latch design with pre-drilled mounting holes
  • Value engineered components without compromising quality or safety
  • Selectable lumen and CCT levels within one product reduces need for multi SKU inventory needs
  • Daintree EZ Connect controls accessory kit available (purchased separately)
  • Captive Polycarbonate Lens/LED Engine assembly
  • Field installable behind the lens microwave motion sensor available (purchased separately)
Where To Buy
SPEC SHEET

Specifications

Family Modules/Configurations
4ft, 8ft
Voltage Offering
120-347 V
Lumen Range
4400 - 10,000lm
CCT Offering
3500 K, 4000 K, 5000 K
CRI Offering
80
Mounting Options
Surface Mount, Ceiling Mount
Wattage Range
32.5 - 81 W
Efficacy Range
119 - 138 LPW
Color Offering
White
Optics & Distributions
Medium Lambertian
Controls & Sensors
0-10V Dimming
Certifications
ETL, DLC Standard
Ratings
Húmedo
Operating Temp
0 to 25 °C
Lumen Maintenance Rating
L90 @ 50,000 horas
Warranty
5 year limited warranty

Product Documents

Field Selectable Options

Designed for maximum flexibility with a minimum number of different parts, one product can offer the equivalent of 6 to 12 different SKU’s. Field installable accessory kits require no “guessing” what the product needs of your next job will be. The kits are ordered separately and can be installed in less than two minutes.

First Cost Design

As requirements vary, some needs are based on “first cost” over total cost of ownership. This product is designed to meet that need. While reliability is still a focus, these product designs look nice, yet offer alternative components that may not have the robustness required by higher profile installations or applications. For reliability you can count on that offers 10 year, 100,000 hour components, consider ALV or ALC products.

Intelligent Controls

Daintree® Wireless Controls provide out-of-the-box integration in field installed kits for enhanced functionality and energy savings. With complete networked system kits, Daintree Wireless Controls provide additional energy savings and simple, quick setup. Remote commissioning for networked systems and the infrastructure to grow into the world of IoT today, or in the future are at the heart of Daintree systems.

Application Photos

Related Products

ALC is an efficient alternative to less decorative linear fixtures for a variety of commercial/industrial, low bay, stairwell uses with many controls options.
View Product
ALV is an energy-efficient, cost effective linear fixture for a variety of commercial/industrial, low bay, stairwell uses with many controls options.
View Product
